Dontronics :: ARM :: Hardware :: OKI ML67 :: OKI-E5003 DEVELOPMENT BOARD

OKI-E5003 DEVELOPMENT BOARD #16587

Prices | Support

FEATURES:

heareds to accept OKI-H5003 processor module

SD/MMC card connector

Compact Flash (CF) connector

LCD 16x2 with backlight

two Relays

two optoisolated digital inputs

status LED

header to accept CS-8900A Ethernet module

four buttons

analog trimpot connected to ADC

thermistor

RS232 connector and driver

Extension connector

PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print

Dimensions: 160x115 mm (6.3 x 4.5 ")

DOCUMENTS:
OKI-E5003.pdf
OKI-E5003.chm

HARDWARE:

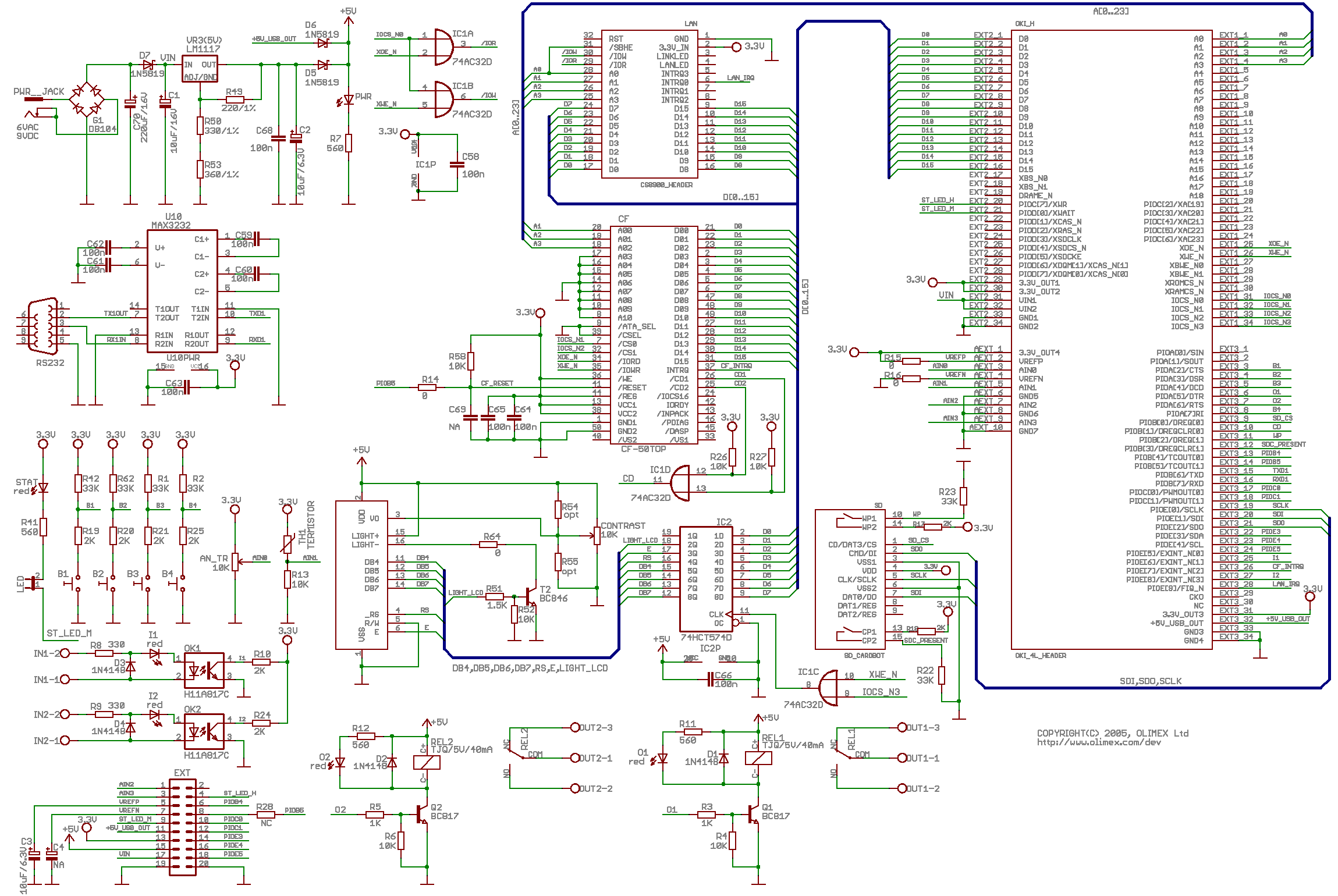

OKI-E5003 schematic

SOFTWARE:
blink LED demo code
SD/MMC read/write routines demo code
CF read/write routines demo code
LCD routines demo code
Temperature measurement demo code
Button, LED, Inputs demo code
CS8900 test code
UART routines

ORDERING CODES:
OKI-E5003 Completely assembled and tested (note: needs separate OKI-H5003 and CS8900 header boards)

Support:
If you need additional support on the above product, and you can't find the information you need in the documentation, then please contact support at the address below:

Support Forum:
http://www.sparkfun.com/cgi-bin/phpbb/index.php

This product is from: OLIMEX Ltd
http://www.olimex.com
info AT olimex.com
Mr. Tsvetan Usunov

Details


Shipped From	Dontronics Tullamarine Australia
Shipping:	Add during Checkout
Aust GST	Payable By Australian Residents
Manufacturer	Olimex Ltd
Price:	AUD$119.35 (USD$ 76.66) (€uro 59.94)

NOTE *** Australian Residents: If Applicable, 10% GST is added to the price, after you have logged in.

1 Item(s) In Stock

Options

Quantity

Quantity :	5-9 Items	10-99 Items	100+ Items
Price:	AUD$113.39	AUD$107.42	AUD$101.45
Price:	USD$ 72.83	USD$ 69.00	USD$ 65.16
Price:	€uro 56.94	€uro 53.95	€uro 50.95
