FEATURES:
MCU: ML67Q5003
ARM7TDMI 16/32-bit RISC CPU, 512KB internal Flash, 32KB internal SRAM,
8KB cache memory, Built-in external memory controller supports external
SRAM, SDRAM, EDO DRAM, Flash, 28 interrupt sources, DMA: 2 channels with
external access, Timers: 7 16-bit timers, Watch-Dog Timer: dual stage 16
bit, PWM: Two 16-bit channels, Serial Interfaces: SIO, UART, USART, I2C,
GPIO: 42 bits, A/D Converter: Four 10-bit channels, Built-in boot ROM accommodates
in-circuit Flash ROM re-programming and field-updates
SDRAM
16MB (8MB x 16bit) 7.5 ns / 166Mhz (allows to run uclinux)
Flash
8MB (4MB x16 bit) 80 ns (enough to store uclinux boot image)
SRAM 512KB
(256KB x16 bit) 10 ns
7.5 Mhz
crystal oscillator (PLL=4 60Mhz)
JTAG connector
USB-RS232
convertor
status
LED
RESET
supervisor IC and button
EXTENSION
IDC34 connectors for all uC ports
USB-RS232
converter connected to UART0
power
supply can be from USB port or external
power
supply LED
8 position
slide switch for uC configuration
PCB: FR-4,
1.5 mm (0,062"), green soldermask, white silkscreen component print
Dimensions
100x65 mm (3.9 x 2.5 ")
DOCUMENTS: OKI-H5003.pdf OKI-H5003.chm OKI-H5003

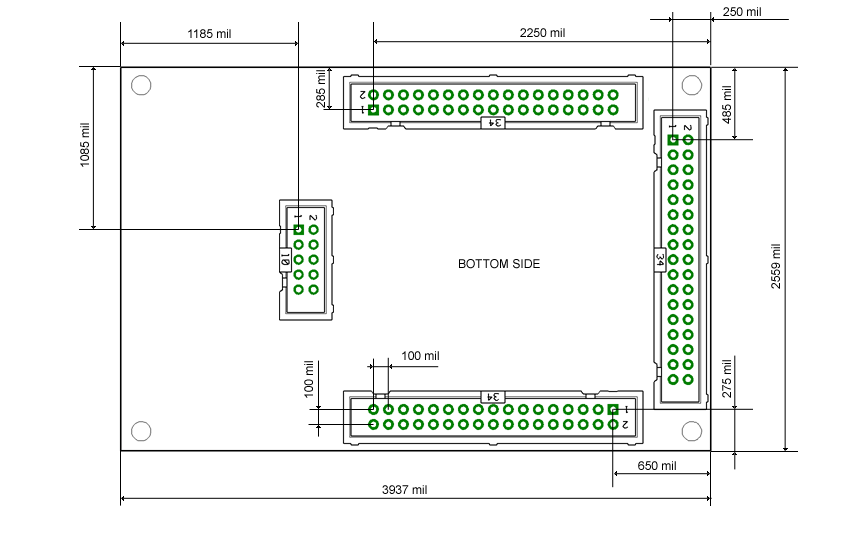

dimensions How
to program OKI-H5003 tutorial by FREE WINGhow
to port uClinux
for OKI ML67Q5003
HARDWARE: OKI-H5003
schematic
SOFTWARE: Blink
LED demo codeUART
routines demo codeExternal
memory test demo code
ORDERING
CODES: OKI-H5003
Completely assembled and tested with ML67Q5003 microcontroller
