Olimex-DuinoMite-IO-Board

Links: Olimex have upgraded their web site and many of the old graphics and document links no longer work. If you are missing links, navigate to the same product on the Olimex site, which is in a similar directory structure as ours, and you will find the correct links. We did try to advise Olimex of the coming problem years ago, and the easy fix, but we weren't able to convince them. By giving link names to specific file names (including versions), the problem will continue.

Prices: This Dontronics supplied Olimex manufactured board, is the same price (or less) than the Olimex Retail price.

Product: 16989
All Dontronics Maximite Computer products are located at: http://www.dontronics-shop.com/the-maximite-computer.html

Prices | Support

In order to make up a complete DuinoMite Computer system using this board, you will need two boards that plug together:
1) Duinomite-Standard
2) DuinoMite I/O board.

INTRODUCTION:

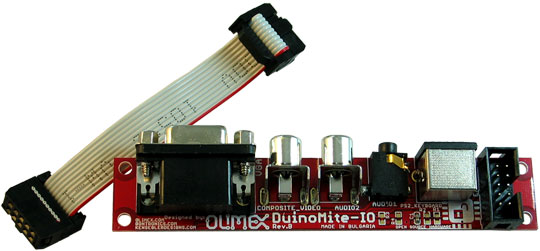

DuinoMite-IO is IO board for Duinomite Basic computer. It adds PS-2 Keyboard, VGA monitor, Composite Video, Audio output to DuinoMite.

FEATURES:

PS-2 connector
Audio jack 3.5 mm connector
Composite Video and Audio for RCA jacks
VGA monitor connector
10 pin IO connector for Duinomite with cable

HARDWARE:

DuinoMite-IO schematic Revision B
