FEATURES:

MCU: AT91SAM7S64 16/32 bit ARM7TDMI™ with 64K Bytes Program Flash, 16K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
perfect solution for building custom USB peripherials
standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
USB connector
RESET circuit
RESET button
status LED
TST jumper, for SAM-BA downloading
on board voltage regulator 3.3V with up to 800mA current
single power supply: through USB or from extension header pin
power supply LED
power supply filtering capacitor
18.432 Mhz crystal on socket
extension headers for all uC ports + RST and power supply
PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
Dimensions: 50 x 34 mm (2 x 1.3")
Distance between the headers: 25.4 mm (1")

SAM7-H64 extension headers pin assignments

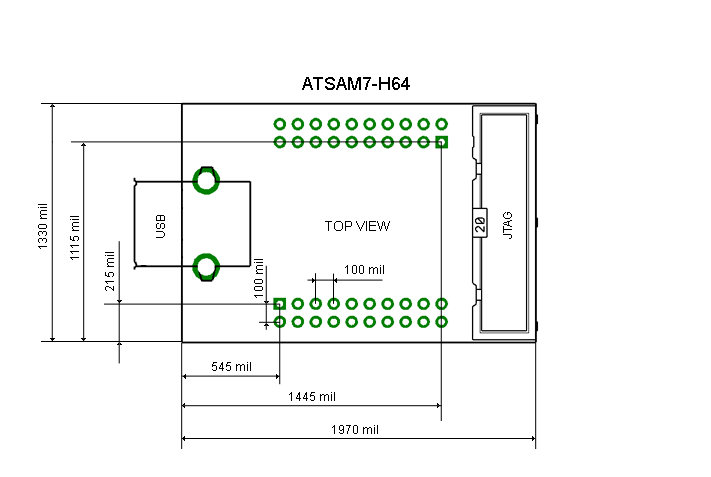

SAM7-H64 dimensions
SAM7-H64.pdf
How to program SAM7-H64

SAM7-H64 Schematic

Blinking LED project and Binary code for SAM-BA load
Sample mouse driver with AT91SAM7P64 project
UART routines project
SD/MMC read/write routines project
button read, temperature measurement project

Support Forum:
http://www.sparkfun.com/cgi-bin/phpbb/index.php

This product is from: OLIMEX Ltd
http://www.olimex.com
info AT olimex.com
Mr. Tsvetan Usunov

Back To Top


Details
Shipped From	Dontronics Tullamarine Australia
Shipping:	Add during Checkout
Aust GST	Payable By Australian Residents
Manufacturer	Olimex Ltd
Price:	AUD$58.52 (USD$ 42.11) (€uro 31.14)
